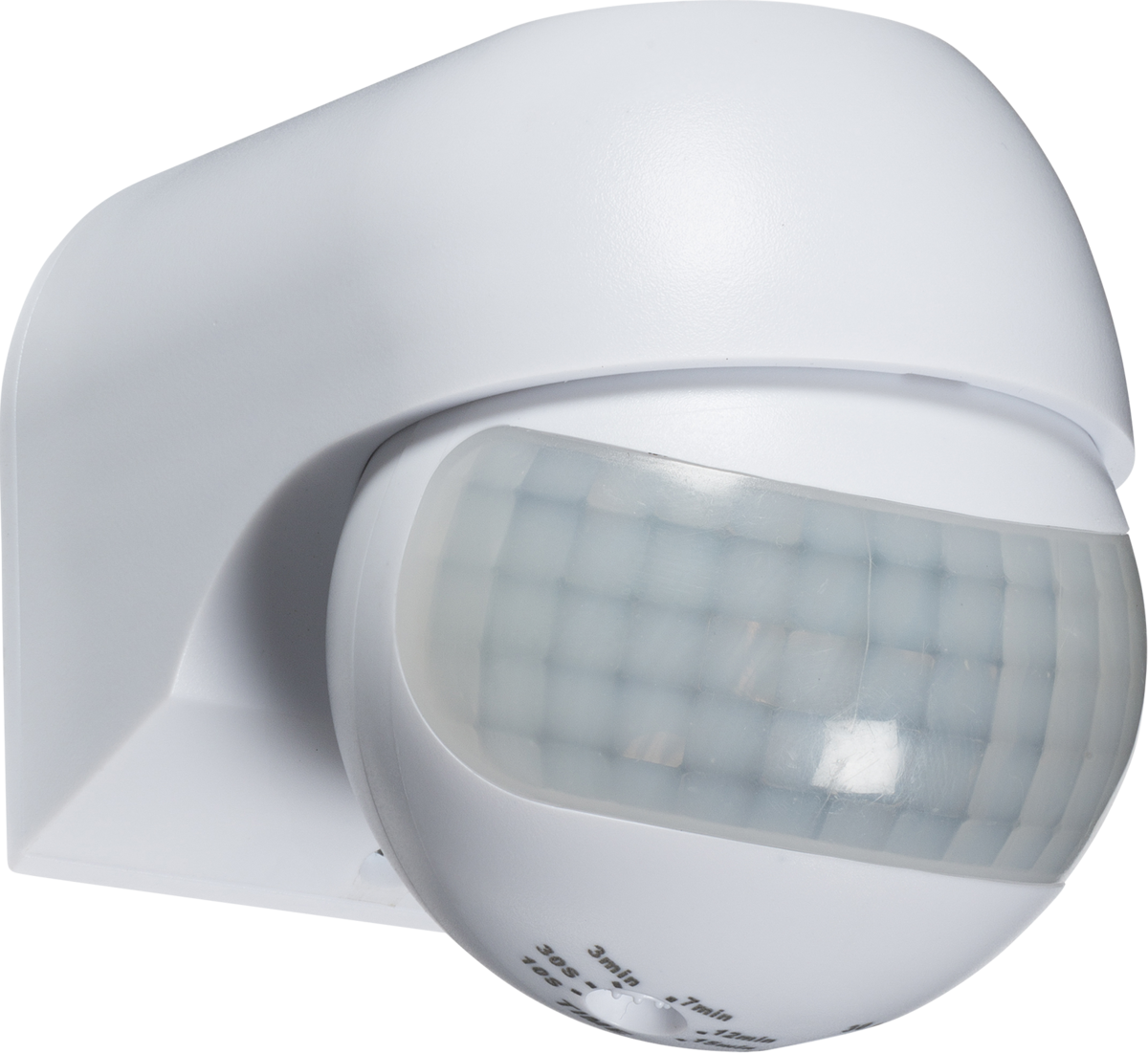

Knightsbridge: 0S0014 IP44 180° Mini PIR Sensor, 12m Detection Range, Adjustable Lux, White

About this product

Introducing the Knightsbridge 0S0014 IP44 180° Mini PIR Sensor, a professional stand-alone PIR unit designed for various installation requirements.

• IP44 rated
• 180° field of detection
• 12m range @ 2.4m installation height
• Adjustable head unit for optimum positioning
• Wall or ceiling mountable
• Automatic operation
• Adjustable Lux
• Adjustable time : 10 seconds to 15 minutes
• Can be wired in parallel
• Switching capacity: Max. 2000W Incandescent / Max. 1000W LED
• Certified to EN 61058-1, EN 55015, EN 61547, EN 61000

Packaged in a Knightsbridge box for superior presentation.

Download

• Datasheet
